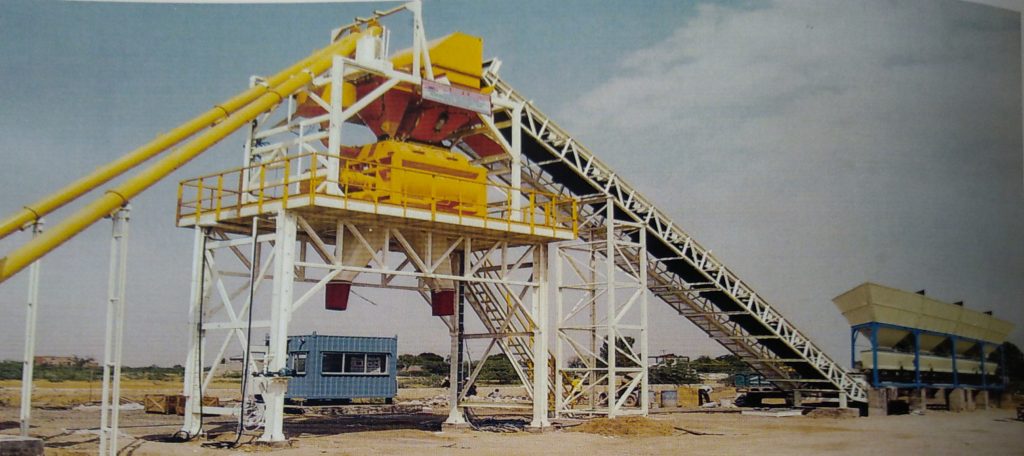

Twin Shaft Concrete Batching Plant
The art in concrete mixing is to make a batch of concrete quickly & completely. Twin shaft mixer’s compulsory spiral mixing action throws particles from each side of the mixer towards the center where combine:
The water is forced through powerful jets into the mix, where it is absorbed completely. allowing cement slurry to coat all the aggregate particles uniformly forming the strongest concrete.
Vishaw Karma twin shaft mixer concrete batching plant have been designed for maximum efficiency & reliability. for producing all type of high quality concrete with production outputs from 30 cum/Hr. to 90 cum/Hr.
- Fully automatic Twin Shaft Mixer.
- Robust structure with Bins.
- Large mixer platfo rm for ease of maintenance.
- Cabling & wiring of all auxiliary devices (Limit switches & solenoid valves) to a box insta lledon mixer.
- Sand blasting, under coat primer & finish paint.
- Main reduction gear :Epicyclical type.
- Digital load cell based material weighing system.
- Material feeding system through conveyor belts.
- Cement feeding system through inclined screw conveyor.
- Auto add mixture dozing system.
- SCA DA based control panel with integral computerized batch controller which accommodates different mix receipes.
- Hydraulically operated discharge door.
Dimensions
| Model | VKCT 30 | VKCT 45 | VKCT 60 | VKCT 90 |
| Output Capacity | 30 cum / Hr. | 45 cum / Hr. | 60 cum / Hr. | 90 cum Hr. |
| Output Rate | 28-30 cum / hr. | 43-45 cum / hr. | 58-60 cum hr. | 88-90 cum hr |
| Batch Capacity | 500 Ltr. | 750 Ltr. | 1000 Ltr. | 1500 Ltr. |
| Main Mixer Drive | 2x 12.5 HP | 2x 15 HP | 49.5 HP | 2 x 49.5 HP |
| Aggregate Compartments | 3 Nos. | 3 Nos. | 3 Nos. | 3 Nos. 12.5 HP |
| Conveyor Motor (Gathering) | 5 HP | 10 HP | 12.5 HP | 15 HP |
| Conveyor Motor (Slinger) | 7.5 HP | 7.5 HP | 2x 10 HP | 2x 12.5 HP |
| Cement Screw Con. Motor | 10 HP | 10 HP | 5 HP | 7.5 HP |
| Water Pump | 2 HP | 12.5 HP | 3 HP | 5 HP |
| Air Compressor Motor | 2 HP | 3 HP | 1 HP | 1 HP |
| Admix Pump | 0.5 HP | 3 HP | 1 HP | 3 No.x1 HP |
| Vibration Motor | 3 No. x 1/2 HP | 3 No. x 1/2 HP | 3 No.x 1 HP | 3 No.x 1 HP |
| Mixing Blades | 12 Nos. Anti-Wear Steel (Hardox) | 16 Nos. (Hardox 400) | 8 Nos. Anti-Wear Hi Chrome Cast Iron | 12 Nos. Anti-Wear NI Hard Chrome Cast Iron |
| Scraper Blades | 2+2 | 2 + 2 | 2 + 2 | 2 + 2 |
